Transformations: Reflections & Translations
WHAT IS A TRANSFORMATION?

A transformation in math is when something moves or changes size. Two common types of transformations are translations and reflections. There are other types of transformations you will learn later.

To better understand transformations: reflections & translations…

WHAT IS A TRANSFORMATION?. A transformation in math is when something moves or changes size. Two common types of transformations are translations and reflections. There are other types of transformations you will learn later. To better understand transformations: reflections & translations…

LET’S BREAK IT DOWN!

Two common types of transformations

Two common types of transformations

Two of the most common types of transformations are translations and reflections. In a translation, something moves from one place to another without changing size or orientation. In a reflection, an image flips to another location, just like with a mirror. Transformations can occur in the coordinate plane. Try this one yourself: Think about seeing yourself reflected in a mirror. How does your hair look the same and different from your real hair? Now picture yourself moving (translating) to another part of the mirror. What changed, and what stayed the same?

Two common types of transformations Two of the most common types of transformations are translations and reflections. In a translation, something moves from one place to another without changing size or orientation. In a reflection, an image flips to another location, just like with a mirror. Transformations can occur in the coordinate plane. Try this one yourself: Think about seeing yourself reflected in a mirror. How does your hair look the same and different from your real hair? Now picture yourself moving (translating) to another part of the mirror. What changed, and what stayed the same?

Review plotting points on a coordinate plane

Review plotting points on a coordinate plane

The coordinate plane consists of two number lines. The x-axis goes from left to right, and the y-axis goes up and down. The lines meet at the origin, (0, 0). We describe a point on the coordinate plane by its location along these two number lines. The point three units to the right of the origin and five units up is assigned the coordinate pair (3, 5). The point two units to the left of the origin and seven units down is assigned the coordinate pair (–2, –7). Try this one yourself: What coordinate pair represents the point located four units to the right of the origin and six units down?

Review plotting points on a coordinate plane The coordinate plane consists of two number lines. The x-axis goes from left to right, and the y-axis goes up and down. The lines meet at the origin, (0, 0). We describe a point on the coordinate plane by its location along these two number lines. The point three units to the right of the origin and five units up is assigned the coordinate pair (3, 5). The point two units to the left of the origin and seven units down is assigned the coordinate pair (–2, –7). Try this one yourself: What coordinate pair represents the point located four units to the right of the origin and six units down?

Reflections can create mirror images

Reflections can create mirror images

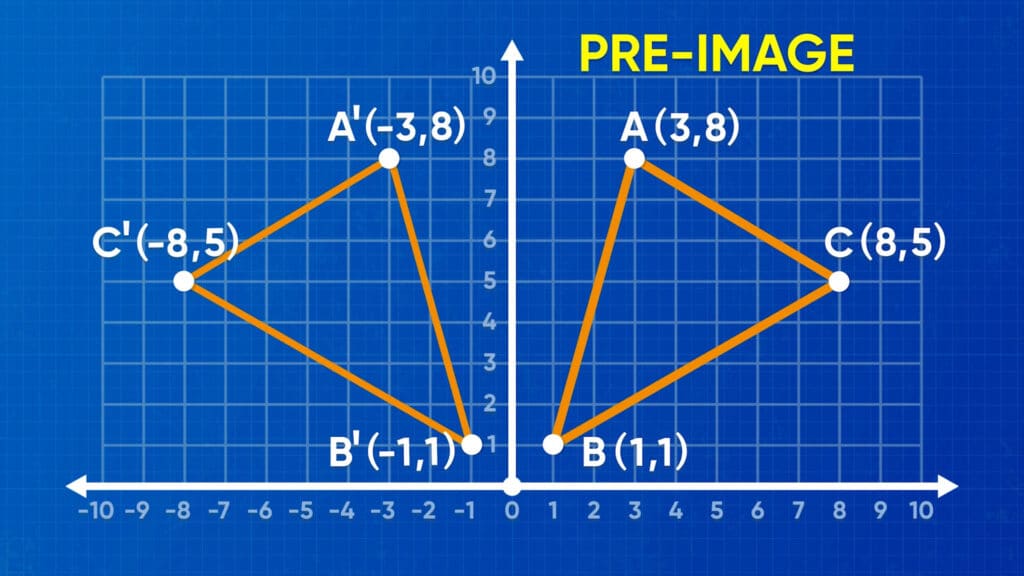

Design software for a website can be set up like a coordinate grid. Before you reflect a graphic, the graphic is called a “preimage,” like the "pre-transformed image." After you reflect the graphic, the new graphic is called the “image.” When you reflect a pre-image, you have to first choose what line you are going to reflect across, choosing where to put the mirror. To start, you could reflect over the x-axis or the y-axis. When you reflect across the y-axis, the y-values of all of the coordinates stay the same. The x-values are opposite the x-values of the preimage. Just like in a mirror, right becomes left and left becomes right. A triangle with vertices A (4, 7), B (2, 3), and C (5, 1) reflects across the y-axis to A′ (–4, 7), B′ (–2, 3), and C′(–5, 1). The vertices of the image now have ' after their names. A' is read "A prime." Another option is to reflect the pre-image over the x-axis. The x-values of the coordinates stay the same and the y-values become opposite of the y-values of the preimage. In this case, the triangle transforms to A′ (4, –7), B′ (2, –3), and C' (5, –1). Try this one yourself: For a pre-image with vertices at A (0, 0), B (3, 0), C (3, 3), and D (0, 3), what are the coordinates of the image after the pre-image is reflected over the x-axis?

Reflections can create mirror images Design software for a website can be set up like a coordinate grid. Before you reflect a graphic, the graphic is called a “preimage,” like the "pre-transformed image." After you reflect the graphic, the new graphic is called the “image.” When you reflect a pre-image, you have to first choose what line you are going to reflect across, choosing where to put the mirror. To start, you could reflect over the x-axis or the y-axis. When you reflect across the y-axis, the y-values of all of the coordinates stay the same. The x-values are opposite the x-values of the preimage. Just like in a mirror, right becomes left and left becomes right. A triangle with vertices A (4, 7), B (2, 3), and C (5, 1) reflects across the y-axis to A′ (–4, 7), B′ (–2, 3), and C′(–5, 1). The vertices of the image now have ' after their names. A' is read "A prime." Another option is to reflect the pre-image over the x-axis. The x-values of the coordinates stay the same and the y-values become opposite of the y-values of the preimage. In this case, the triangle transforms to A′ (4, –7), B′ (2, –3), and C' (5, –1). Try this one yourself: For a pre-image with vertices at A (0, 0), B (3, 0), C (3, 3), and D (0, 3), what are the coordinates of the image after the pre-image is reflected over the x-axis?

Translations can make an animated superhero fly

Translations can make an animated superhero fly

To make an animated superhero fly across the screen, a visual effects artist must move the image from one place to another. This is an example of a translation. In a translation, the only thing that changes about the pre-image is its location; the angle measurements and side lengths all stay exactly the same. Let’s say a superhero’s head is at (10, 20), and its feet are at (6, 19). If the superhero translates to the right 5 units, only the x-coordinates change. We add 5 to each x-coordinate. The superhero’s head moves to (15, 20), and its feet move to (11, 19). What if, instead of translating to the right, the superhero moved straight down 5 units? In this case, only the y-coordinates change. We subtract 5 from each y-coordinate. The superhero’s head is now at (10, 15) and its feet are at (6, 14). Try this one yourself: A line segment with endpoints at (7, 9) and (5, 11) is translated 4 units to the left. Where are the image’s endpoints?

Translations can make an animated superhero fly To make an animated superhero fly across the screen, a visual effects artist must move the image from one place to another. This is an example of a translation. In a translation, the only thing that changes about the pre-image is its location; the angle measurements and side lengths all stay exactly the same. Let’s say a superhero’s head is at (10, 20), and its feet are at (6, 19). If the superhero translates to the right 5 units, only the x-coordinates change. We add 5 to each x-coordinate. The superhero’s head moves to (15, 20), and its feet move to (11, 19). What if, instead of translating to the right, the superhero moved straight down 5 units? In this case, only the y-coordinates change. We subtract 5 from each y-coordinate. The superhero’s head is now at (10, 15) and its feet are at (6, 14). Try this one yourself: A line segment with endpoints at (7, 9) and (5, 11) is translated 4 units to the left. Where are the image’s endpoints?

Translations can move in two directions

Translations can move in two directions

Let’s say a pre-image is a triangle with vertices A (–8, 5), B (–3, 2), and C (–9, 2). A translation three units to the right increases all of the x-coordinates by three, while a translation four units down decreases all of the y-coordinates by four. Vertex A moves from (–8, 5) to become point A′ at (–5, 1). Vertex B moves from (–3, 2) to become point B′ at (0, –2). Vertex C moves from (–9, 2) to become point C′ at (–6, –2).Try this one yourself: If a pre-image is a point located at (6, 1), what coordinate pair represents the image after a translation 8 units left and 3 units up?

Translations can move in two directions Let’s say a pre-image is a triangle with vertices A (–8, 5), B (–3, 2), and C (–9, 2). A translation three units to the right increases all of the x-coordinates by three, while a translation four units down decreases all of the y-coordinates by four. Vertex A moves from (–8, 5) to become point A′ at (–5, 1). Vertex B moves from (–3, 2) to become point B′ at (0, –2). Vertex C moves from (–9, 2) to become point C′ at (–6, –2).Try this one yourself: If a pre-image is a point located at (6, 1), what coordinate pair represents the image after a translation 8 units left and 3 units up?

A sequence of transformations can reveal congruence

A sequence of transformations can reveal congruence

Two shapes are congruent when they have the same size and shape. If they are congruent, then you can move one on top of the other for an exact match. That is, the shapes overlap perfectly. Imagine a triangle with vertices F (3, 5), G (3, 2), and H (7, 2). Also imagine a second triangle with vertices J (–1, –5), K (–1, –2), and L (3, –2). Can triangle FGH be transformed onto triangle JKL? In this case, start by reflecting triangle FGH over the x-axis by changing the y-coordinates to their opposites. That gives us points F′ (3, –5), G′ (3, –2), and H′ (7, –2). Then translate this triangle 4 units to the left by subtracting 4 from all x-coordinates. Point F′ moves over to where J is at (–1, –5), point G′ moves over to where K is at (–1, –2), and point H′ moves over to L at (3, –2). There you have it! Since the vertices overlap perfectly, and none of the angles or side lengths changed at all, triangle FGH and triangle JKL are congruent: an exact match! Try this one yourself: Draw two identical triangles in the coordinate plane, where getting to the image requires at least one reflection and one translation. Identify the vertex coordinates of each triangle.

A sequence of transformations can reveal congruence Two shapes are congruent when they have the same size and shape. If they are congruent, then you can move one on top of the other for an exact match. That is, the shapes overlap perfectly. Imagine a triangle with vertices F (3, 5), G (3, 2), and H (7, 2). Also imagine a second triangle with vertices J (–1, –5), K (–1, –2), and L (3, –2). Can triangle FGH be transformed onto triangle JKL? In this case, start by reflecting triangle FGH over the x-axis by changing the y-coordinates to their opposites. That gives us points F′ (3, –5), G′ (3, –2), and H′ (7, –2). Then translate this triangle 4 units to the left by subtracting 4 from all x-coordinates. Point F′ moves over to where J is at (–1, –5), point G′ moves over to where K is at (–1, –2), and point H′ moves over to L at (3, –2). There you have it! Since the vertices overlap perfectly, and none of the angles or side lengths changed at all, triangle FGH and triangle JKL are congruent: an exact match! Try this one yourself: Draw two identical triangles in the coordinate plane, where getting to the image requires at least one reflection and one translation. Identify the vertex coordinates of each triangle.

TRANSFORMATIONS: REFLECTIONS & TRANSLATIONS VOCABULARY

Number line
A horizontal or vertical line used to order numbers from least on the left or bottom to greatest on the right or top.
Origin
The point at (0, 0) on the coordinate plane.
Transformation
Changing a shape, or parts of a shape, from one place to another.
Reflection
Flipping a shape, often over the x-axis or the y-axis.
Translation
Moving a shape from one place to another.
Prime
The notation for a point that is transformed (the symbol ′). Additional marks can be made, such as double prime (′′), triple prime (′′′), and so on, for further transformations.
An original shape before it is transformed.
A new shape after it is transformed.
The first number of a coordinate pair, representing a distance to the left or right of the y-axis.
The second number of a coordinate pair, representing a distance above or below the x-axis.
Shapes that are identical, even if they are in different locations.

TRANSFORMATIONS: REFLECTIONS & TRANSLATIONS DISCUSSION QUESTIONS

How are reflections and translations the same?

They both result in an image that is congruent to a pre-image.

How are reflections and translations different?

Reflections make mirror images, while translations slide a shape on the coordinate plane.

How can you decide if two shapes on the coordinate grid are congruent?

Use transformations to move (or “map”) one shape onto the other.
